As an important part of modern rehabilitation assistive devices, electric wheel chair has become an indispensable means of transportation and life in the daily life of many people with limited mobility. Compared with traditional manual wheelchairs, power wheels chairs achieve automatic movement through electric drive systems, greatly improving the user's freedom of movement and independence of life.
This article will focus on the core issue of "What is an electric wheel chair" and systematically interpret the definition, structure, principle, function, applicable population, classification method, usage method, safety instructions, etc. in a professional and detailed manner, aiming to provide the public with a comprehensive and in-depth knowledge framework for power wheels chairs.
What is an electric wheel chair?
An electric wheel chair is a high-tech auxiliary mobile device that is driven by a motor, powered by a battery, and can be operated in multiple directions through a controller. It is mainly used to help people with limited mobility, the elderly, or limb rehabilitation personnel to carry out daily travel and life activities. Compared with traditional manual wheelchairs, power wheels chairs do not rely on human drive and have the advantages of simple operation, labor saving and high efficiency. Users can control the wheelchair's forward, backward, turning and other movements through joysticks, buttons, and even voice control.
What are the technical components of an electric wheel chair?
The structure of the power wheels chair is relatively complex, involving multiple core components. Its overall technical composition includes the following five key parts: drive system, battery system, control system, seat system, tire and suspension system.
1. Drive system
The electric wheel chair is usually equipped with two independent motors, which drive two main wheels respectively. This type of drive system determines the movement mode of the electric wheel chair, such as front-wheel drive, rear-wheel drive and middle-wheel drive. The drive system is the "heart" of the electric wheel chair, which directly affects its running speed, climbing ability and ground adaptability.
2. Battery system
The battery is the "energy center" of the power wheels chair. Currently, lead-acid batteries or lithium batteries are mostly used. Lithium batteries are more widely used in new electric wheel chairs because of their advantages such as lightness, long life and fast charging speed. The capacity of the battery determines the endurance of the electric wheel chair, which generally ranges from 15 to 40 kilometers, depending on the use environment and load conditions.
3. Control system
The control system is the "brain" of the power wheels chair, including the main controller, operating interface (such as joystick, keyboard, touch screen, etc.) and sensor system. High-end models are even equipped with smart chips, which can realize intelligent navigation, automatic obstacle avoidance and other functions. The control system ensures that the electric wheel chair operates stably in different environments and achieves precise control of speed and direction.
4. Seat system
The seat part of the power wheels chair needs to consider the user's long-term riding comfort. Generally, memory foam cushions and adjustable angle backrests are used. Some models provide electric adjustment functions, such as lying, lifting, and footrest adjustment. This is of great significance for long-term bedridden people or patients with spinal injuries.

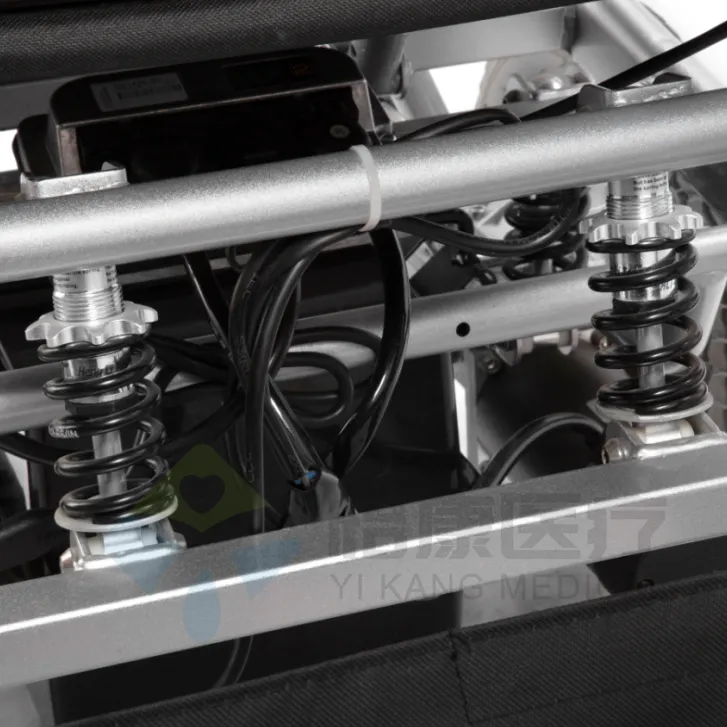

5. Tire and suspension system
The tires of the electric wheel chair are generally explosion-proof solid tires or pneumatic tires, the latter providing better shock absorption. Some high-end models are equipped with independent suspension systems, which can adapt to more complex road conditions, such as slopes, uneven ground, etc., to ensure smooth and safe driving.
What is the role of the electric wheel chair?
The core function of the power wheels chair is to provide autonomous mobility, freeing users from excessive dependence on others. The main functions can be summarized as follows: realize daily travel, improve quality of life, and reduce nursing intensity.
1. Realize daily travel
Through the power wheels chair, people with limited mobility can travel independently in scenes such as home, community, park, shopping mall, etc., no longer restricted by environmental conditions.
2. Improve the quality of life
The intelligent and comfortable design of the power wheels chair allows users to use it for a long time, carry out outdoor activities, social interactions, etc., so as to gain more sense of life participation and psychological satisfaction.
3. Reduce nursing intensity
Users of the power wheels chair no longer rely entirely on nursing staff to push, which greatly reduces the burden of nursing and improves the user's personal dignity and self-confidence.
Who are the people who are suitable for electric wheel chair?
Electric wheel chair is widely used for people with various types of mobility impairments, including but not limited to the following groups:
● Patients with spinal cord injury;
● People with sequelae of stroke;
● People with lower limb paralysis;
● Elderly and frail elderly people;
● Patients with multiple sclerosis;
● People with major bone injuries or postoperative mobility difficulties during rehabilitation.
The common feature of these people is that they have decent hand operation ability, but their legs cannot walk effectively. The convenience of power wheels chair provides great convenience for their daily life.
What are the classification methods of electric wheel chair?
According to different standards, power wheels chair can be divided into many types:
1. Classification by driving mode
● Front-wheel drive electric wheel chair: The front wheel is responsible for driving, with a small turning radius, suitable for indoor use.
● Rear-wheel drive electric wheel chair: The rear wheel is responsible for driving, with stronger driving stability, suitable for outdoor road conditions.
● Mid-wheel drive electric wheel chair: Smaller turning radius, flexible control, both indoor and outdoor
2. Classification by operation method
● Handle-controlled electric wheel chair: Users control it through a joystick, which is the most common type.
● Button-controlled electric wheel chair: Suitable for users with limited hand strength or limited control range.
● Head-controlled/chin-controlled power wheels chair: Suitable for quadriplegics, control is achieved through head movements.
● Smart power wheels chair: Supports voice control, eye control, smart navigation and other functions.
3. Classification by functional expansion
● Foldable electric wheel chair: Easy to carry and store, suitable for users who often go out.
● Lifting electric wheel chair: The seat height can be adjusted, which is convenient for working or communicating at the dining table.
● Reclining electric wheel chair: The backrest and footrest are adjustable, suitable for long-term riding and lying needs.
What should I pay attention to when using an electric wheel chair?
Although the power wheels chair is a high-tech product, it is still necessary to comply with certain safety regulations during use to ensure the personal safety of the user:
1. Power management: Be sure to check the battery power regularly, ensure sufficient power before traveling, and avoid power outages on the way. Lithium batteries should avoid over-discharge and over-charge to extend their service life.
2. Terrain adaptability: Although some power wheels chairs have good off-road performance, it is not recommended to use them for a long time on slippery, steep slopes or sandy and gravel surfaces. Urban roads and indoor environments are the most suitable usage scenarios.
3. Regular maintenance: Electric wheel chairs need to regularly check key components such as the drive system, battery connectors, and brake systems to prevent hidden dangers such as circuit aging and motor damage.
4. Waterproof and moisture-proof: Most power wheels chairs are not completely waterproof. They should be avoided on rainy days, or protective equipment such as rain covers should be selected to prevent the electronic control system from being damp and short-circuited.
5. Operation training: Those who use power wheels chairs for the first time should receive basic operation training, master the start-stop, steering, speed adjustment and other functions, and reduce the risk of misoperation.
Recommendations for purchasing power wheels chairs
The selection of electric wheel chairs should take into account the user's physical condition, living environment, frequency of use and budget. The following aspects are important references when purchasing:
1. Battery life and charging efficiency: People who travel for a long time every day should choose a high-capacity lithium battery model;
2. Control method and convenience: Choose the most suitable operation interface according to the flexibility of your hands;
3. Comfort and ergonomic design: seat adjustment ability, backrest support, etc. are the key to long-term use;
4. After-sales service and maintenance guarantee: Choose a brand with a complete service network and parts supply guarantee, which is conducive to subsequent maintenance;
5. Portability and storage method: If you need to go out or carry frequently, it is more suitable to choose a lightweight and foldable style.
Why choose Yikang Medical as your medical equipment supplier in China?
Yikang Medical, located in Foshan City, Guangdong, is recognized for its strong manufacturing capability and over a decade of industry experience. Since 2010, we have been providing OEM services for top medical brands, and since 2014, we have focused on producing power wheels chairs and hospital beds with international certifications including CE, ISO13485, FDA, and ISO9001. Get quotes today and benefit from our promotions and customized supply options.
